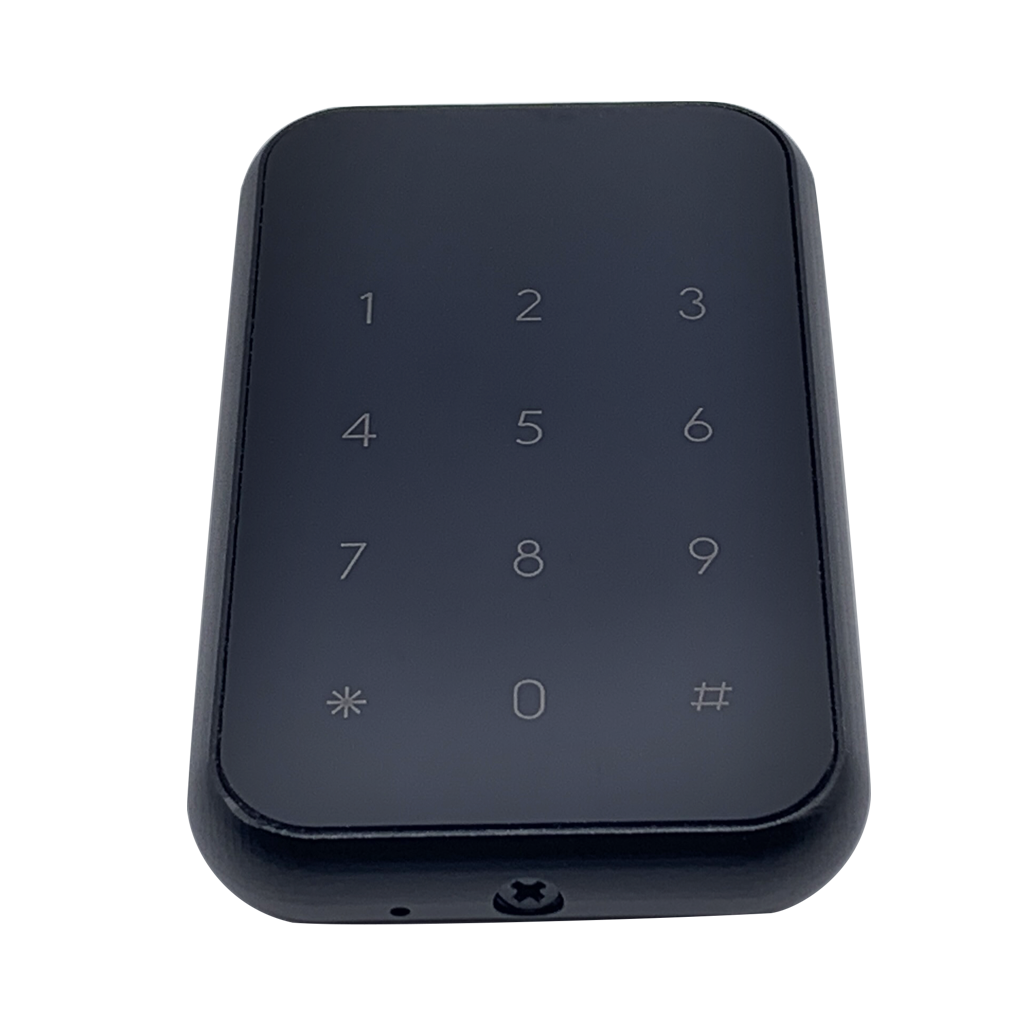

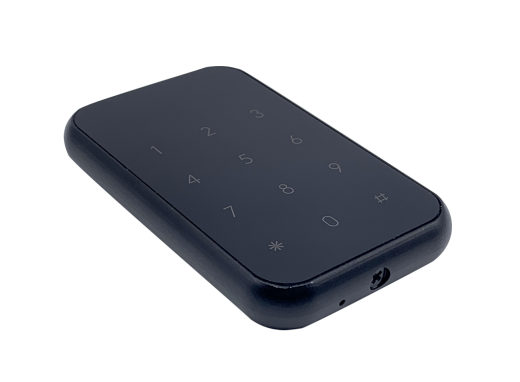

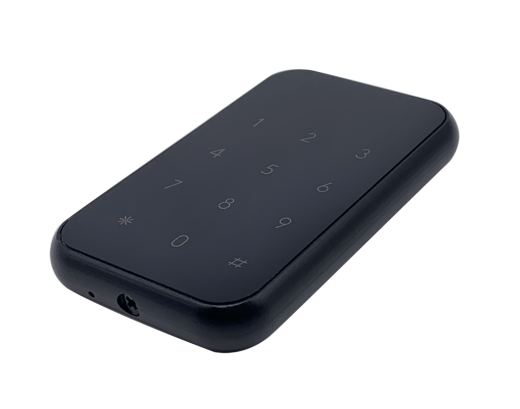

The HSU-HAC-BT online system wall controller is designed to solve issues associated with the functioning of non-standard hotel access control devices, such as turnstiles, barriers, electromagnetic, and classic electromechanical locks, as well as any other device connected according to NC and NO schemes.
The controller provides an opportunity to enable access by a card, a permanent card, the App via Bluetooth, and a password. Like an online lock, the HSU-HAC-BT access controller can be opened remotely in HTLock.
The controller can be mounted on the front or back of the door. In this case, one needs to push a button to open the door from the other side. Also, it is possible to mount the device on both sides of the door to obtain data on passages in both directions. Please note that if the controller is located on the evacuation route, it has to be integrated into the fire alarm system in order to disable it in case the alarm is triggered.
The controller requires an external 12 V power supply.
Application examples
- A door equipped with an electromagnetic lock, for example, a wicket gate, guest and personnel's passages through which should be controlled. Additionally, the door needs to be opened by pushing the button from the reception.
- A turnstile providing access to an additional area of the hotel.
- A parking barrier.
- As a simple elevator floor controller when swiping a card enables the guest floor button block. To reach a certain floor, a guest needs to swipe the card, enter the code or use the mobile App.
|
System
|
Online, BLE |
|
Model
|
HSU-HAC-BT |
|
Dimensions
|
100 Ñ… 60 Ñ… 12 mm |
|
Card Type
|
Mifare Classic in offline mode, Mifare Classic in online mode, App (Bluetooth), Remote opening, Password |
|
Color
|
Black |
|
Production material
|
Plastic, steel chassis |
|
Power supply type
|
12 V (external) |
|
Current
|
120 mA |
|
Distance
|
0–5 cm |
|
Turn-off delay time
|
after 5 sec |
|
Operating Humidity
|
20 – 93 % |
|
Operating Temperature
|
- 10 – + 60 °C |
|
Indication
|
Blue keyboard backlight |
|
EEPROM
|
Memory: 889 cards / passwords, except for offline passwords |
|
Installation conditions
|
Installing on a metal sheet is not allowed, for example, wide fence posts placed closely to each other |
|
Compatible with PMS
|
at the HTLock level |
|
