The HSU-BTGW gateway is intended for transferring HSU-xxxxBT-x series locks to online mode. It provides a connection of locks to a hotel server running HTLock software. On connecting the lock to the server, all the online lock management system options become available. Without connecting a lock to the gateway, the device operates offline.
By default, the gateway works with locks using Sub-1G technology at a frequency of 433 MHz, simultaneously serving up to 32 devices (electronic door locks, passage controllers, elevator controllers). Devices that do not support Sub-1G can be connected to the gateway using BLE (4.2) technology, but in this case, the maximum number of devices is four.
The device requires an external 5V power supply with a USB-C connector. To power the device via POE, it is needed to purchase a third-party POE splitter with the required connector.
Functions
- Support for online locks in Sub-1G (433 MHz) and BLE modes.
- Support for connecting to the server via Ethernet (10/100 Mbps).
- Built-in Wi-Fi Hotspot for configuring the gateway.
- Support for static and dynamic IP.
- Setting up the device name on the server specifying the location during the installation process.
- Support for 12 physically isolated Sub-1G channels, physical isolation reduces interference.
- Sub-1G frequency: 433 MHz.
- BLE 4.2 support.
Also, an online energy-saving switch can operate as an electronic lock gateway in the room.

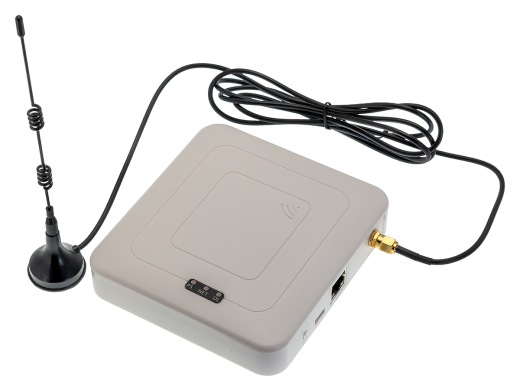

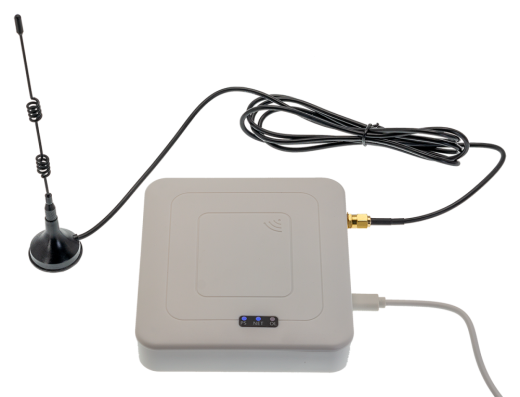

*The showed appearance of the device may slightly vary.
|
System
|
Online, BLE |
|
Model
|
HSU-BTGW |
|
Dimensions
|
100 x 84 x 27 (without antenna) |
|
Color
|
Black |
|
Production material
|
Metal |
|
Power supply type
|
5V (external, USB-C) or 12V (external) depending on the model |
|
Operating Humidity
|
20 - 93% |
|
Operating Temperature
|
- 10 – + 65 °C |
|
Indication
|
LAN indicator |
|
EEPROM
|
Yes |
|
Installation conditions
|
Sub-1G antenna remote cable (433 MHz) 1 m long |
|
Computer connection
|
LAN (Ethernet) |
|
