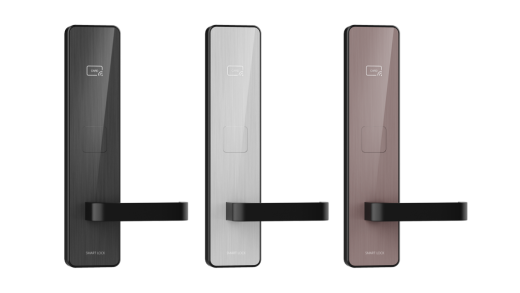

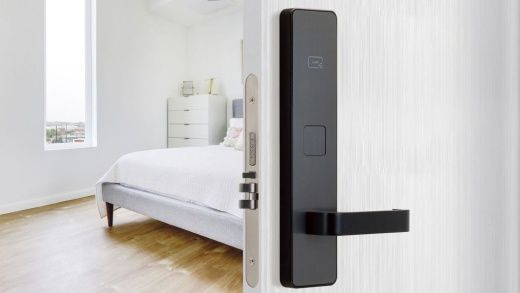

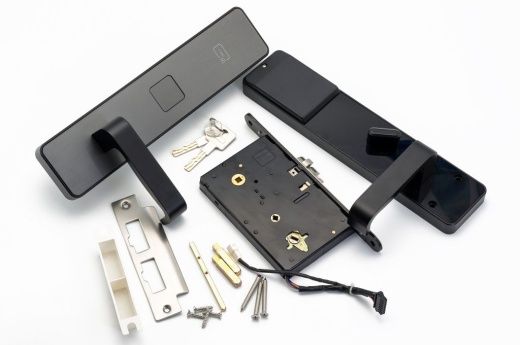

The HSU-9953BT series electronic hotel door lock model uses CNC-machined aluminum handle plates. This ensures the highest dimensional accuracy of each hotel lock. Besides, the production of decorative elements and their application to the surface of handle plates by casting provides perfect joints and preserves the original condition of the device during the entire service life. Using aluminum profiles along with the steel base allows our door locks to be easily operated under more severe conditions compared to classic hotel locks produced of stainless steel.
Producing hotel door handle plates involves in-mold decoration (IMD). This is the key factor for effective corrosion protection and long service life for many years. The lock retains its initial color regardless of the operating conditions, even in case it is installed in a highly corrosive environment. The IMD-method coating of the hotel lock handle plates can be done in any color, including a gradient.
The aluminum hotel door plate frame is corrosion-proof as a result of oxidized sandblasting. The color of hotel room door locks will remain vibrant after 10 years of use. Due to the CNC machine treatment of the frame, all corners and edges are perfectly even and smooth. The inner part of the door plate (the chassis) has an electroplated coating. This makes the construction much more durable than classic zinc alloy plates.
Hotel electronic HSU locks are modern, functional, technological locking solutions that correspond to international quality standards. They have the following advantages:
- A long service life guarantee
- A trendy design
- The option to configure electronic hotel locks to any door and opening method
We manufacture all locks from high-quality materials and offer a variety of color options.
Finish layers are resistant to light and other external factors and enjoy a long-lasting sheen. An extended warranty backs up our quality guarantee.
Features of the HSU Online Electronic Hotel Locks
All HSU hotel online locks use HTLock software that should be installed on the hotel server. Deploying the hotel ACS system on a local server provides system fault tolerance due to independence from the operation of external communication channels. The hotel, in principle, may not have access to the Internet, but all the services provided for the online locks are still available for the hotel.
In order to connect the lock to the server, either Sub-1G or BLE (Bluetooth Low Energy) technology is required. Sub-1G networking enables communication at the lowest energy consumption. The technology is used by the specialized HSU-BTGW gateway. BLE can be involved in case the HSU-FK002-BT online energy-saving switch is operated as a gateway. One HSU-BTGW gateway can serve up to 32 hotel locks, but one online switch is required for one lock of a particular room.
The HTLock system also allows the use of online locks that work offline. In this case, the lock can be opened by a guest with a keycard, by a dynamic offline password (for locks with a code panel), by mobile application via Bluetooth. This mode is especially convenient, for example, at a campsite with several cabins located around the territory, where it is quite difficult to deploy the system of gateways.
In the standard online mode, a lock can be opened with a keycard, a permanent guest keycard, the set password in both offline and online modes (for devices with a code panel), the application installed on a mobile device to which the lock is paired via Bluetooth, or remotely from the administrator's workplace.
In online mode, a hotelier has access to the status of a lock and all the logs. Including reports on passages through each door based on the data collected in real time.
Taking into account the hybrid structure of the solution, specially designed for the hotel industry, even in the event of a total failure of the online system (for example, a failure of the server, LAN that ensures the operation of gateways or online switches, power outage), all locks in the hotel continue working properly and still can be easily opened with a guest keycard. In the event of a prolonged system failure (like a long power outage), you have an option to issue guest keycards using the HSU-HS lock programmer. These measures have been taken to protect your guests and your reputation.
The implemented PMS integration module allows issuing guest keycards directly from the workplace of the hotel administrator from the usual software environment of the hotel accounting system, including a popular cloud PMS. The PMS integration module can be used with all popular hotel systems.
Each electronic lock comes with a mechanical key. It helps to open a door in case of an electronic failure or when the batteries are completely discharged. This ensures that there is no need to break down a room door in these cases.
System
|
Online, BLE |
Model
|
HSU-9953BT-S |
Dimensions
|
68,0 x 300,0 mm |
Card Type
|
Mifare Classic in offline mode, Mifare Classic in online mode, App (Bluetooth), Remote opening |
Color
|
Silver by IMD method |
Production material
|
Aluminum frame on a steel chassis |
Mechanical key
|
Yes |
Mechanical key type
|
lock / all locks |
Power supply type
|
4 x 1.5 V AA batteries, enough for 15 000 operations |
Dynamic Electric Current
|
less than 150 mA |
Distance
|
0–5 cm |
Turn-off delay time
|
after 6 sec. |
Electromotor
|
inside the mortise |
Operating Humidity
|
10 to 90 RH |
Operating Temperature
|
-25 – +65 °С |
Charge level before Alarm signal
|
4.8 V. If the charge is less than 4.8 V, the lock can be opened easily more than 100 times |
Indication
|
door opening, unauthorized activity, low battery (indicated by a red and blue LED) |
EEPROM
|
to maintain the information and configuration even if the batteries are removed |
Audit
|
up to 1000 records |
Door thickness
|
from 30 mm |
Handle
|
outside type, anti-tamper with free moving clutch mechanism, excludes the opening force |
Installation conditions
|
door thickness 30-80 mm; when you order, you must specify if the door thickness is less than 38 mm or more than 55 mm; standard door thickness is 45 mm; distance from the edge of the door to the nearest decor should be at least 110 mm |
Options
|
you can always open the door with a handle from the inside (an anti-panic function), ability to change the mode from hotel to office in the lock |
