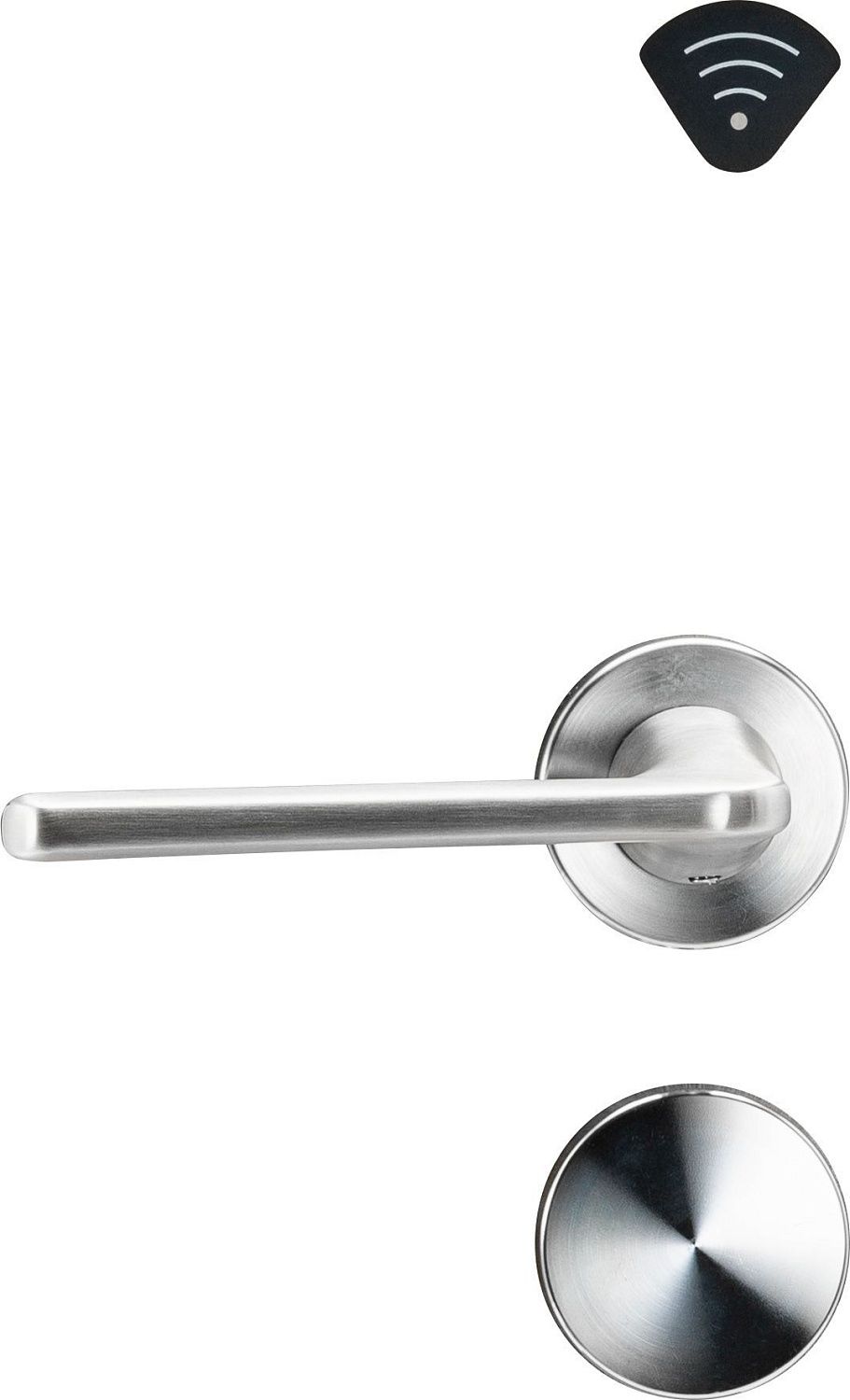

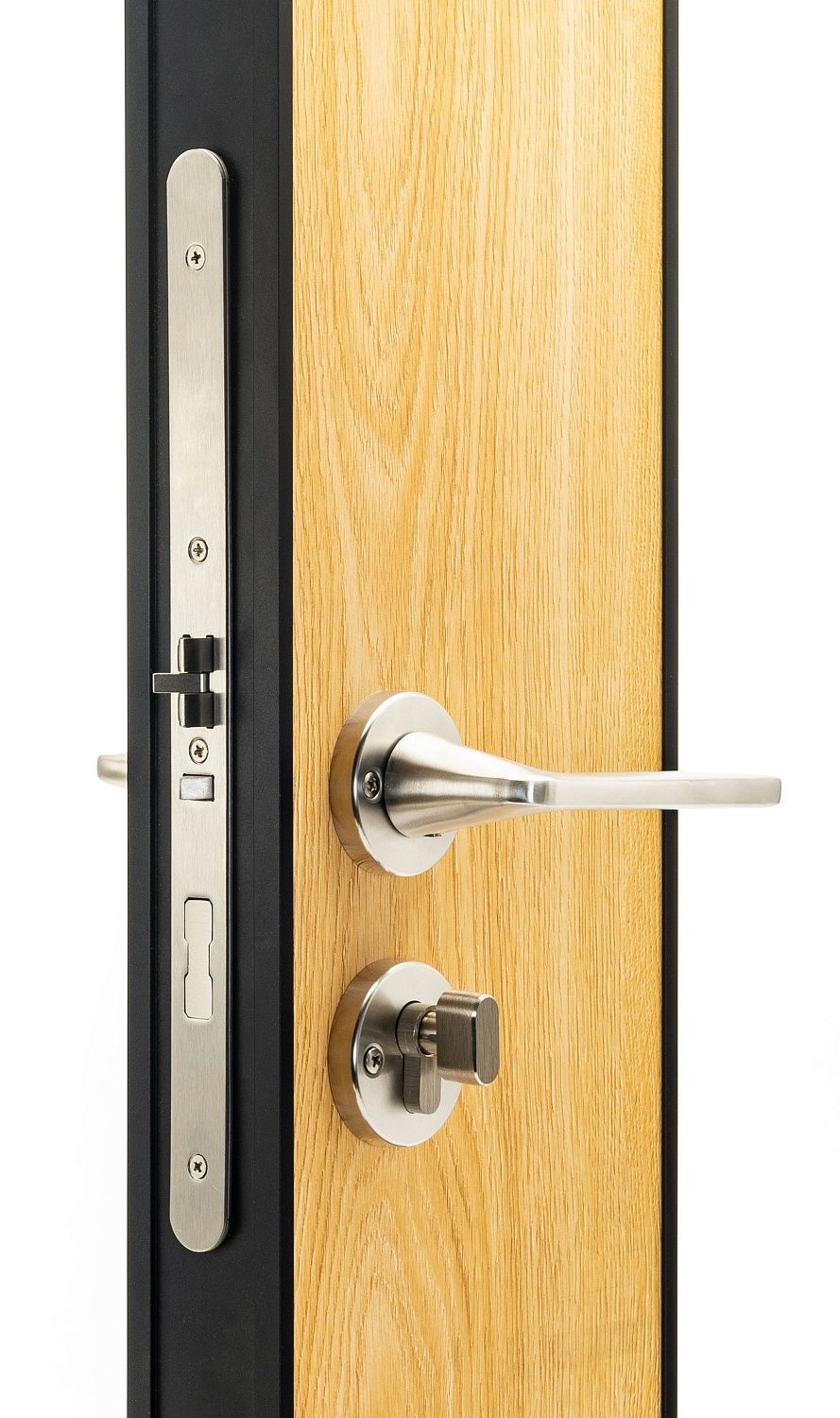

A lock with various handle options and a standard DIN cylinder.
The main feature of the HSU-9909 hotel lock is a variable set of handles, the use of which has become possible due to the contruct of a standard DIN cylinder as an emergency mechanical key.

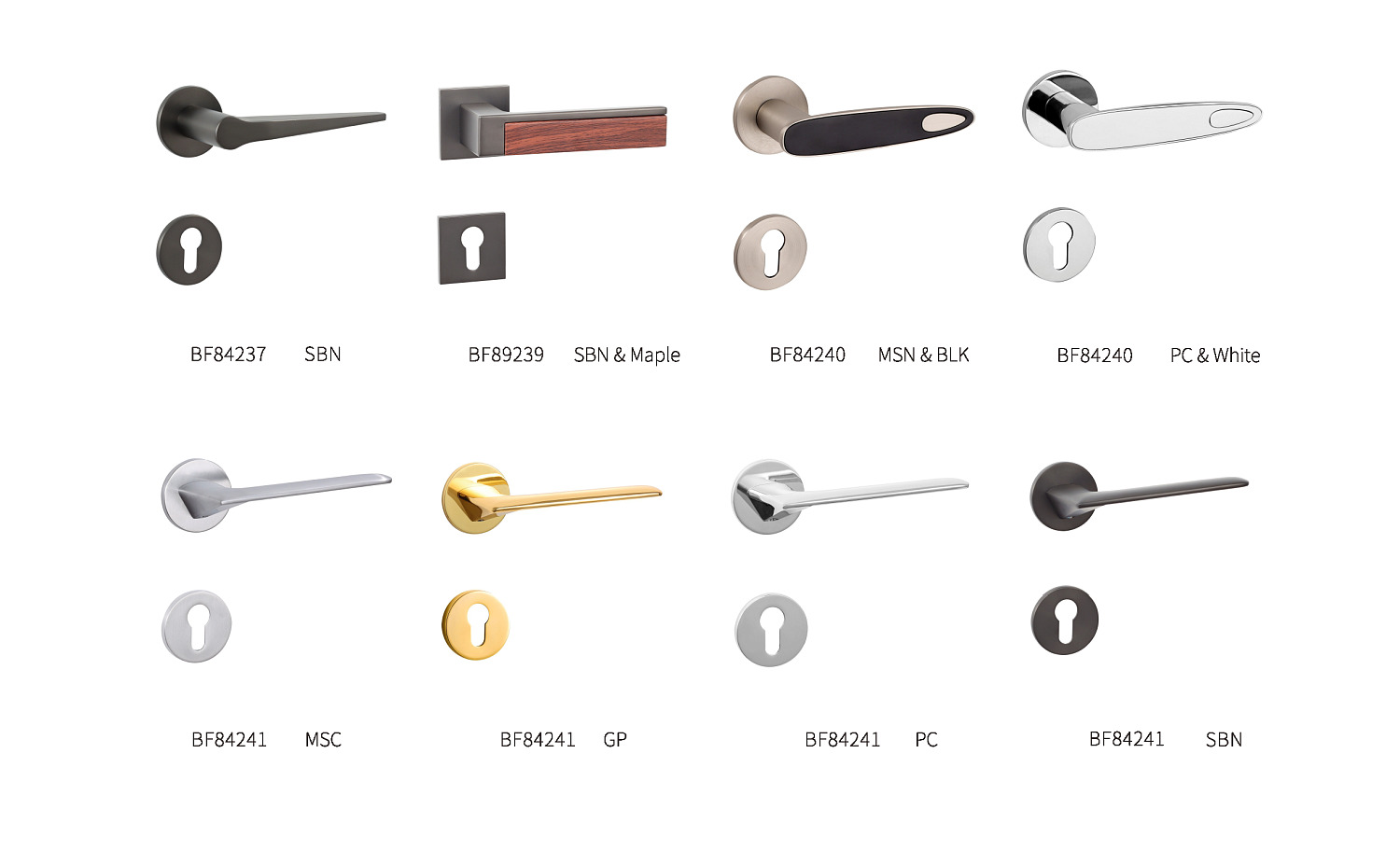

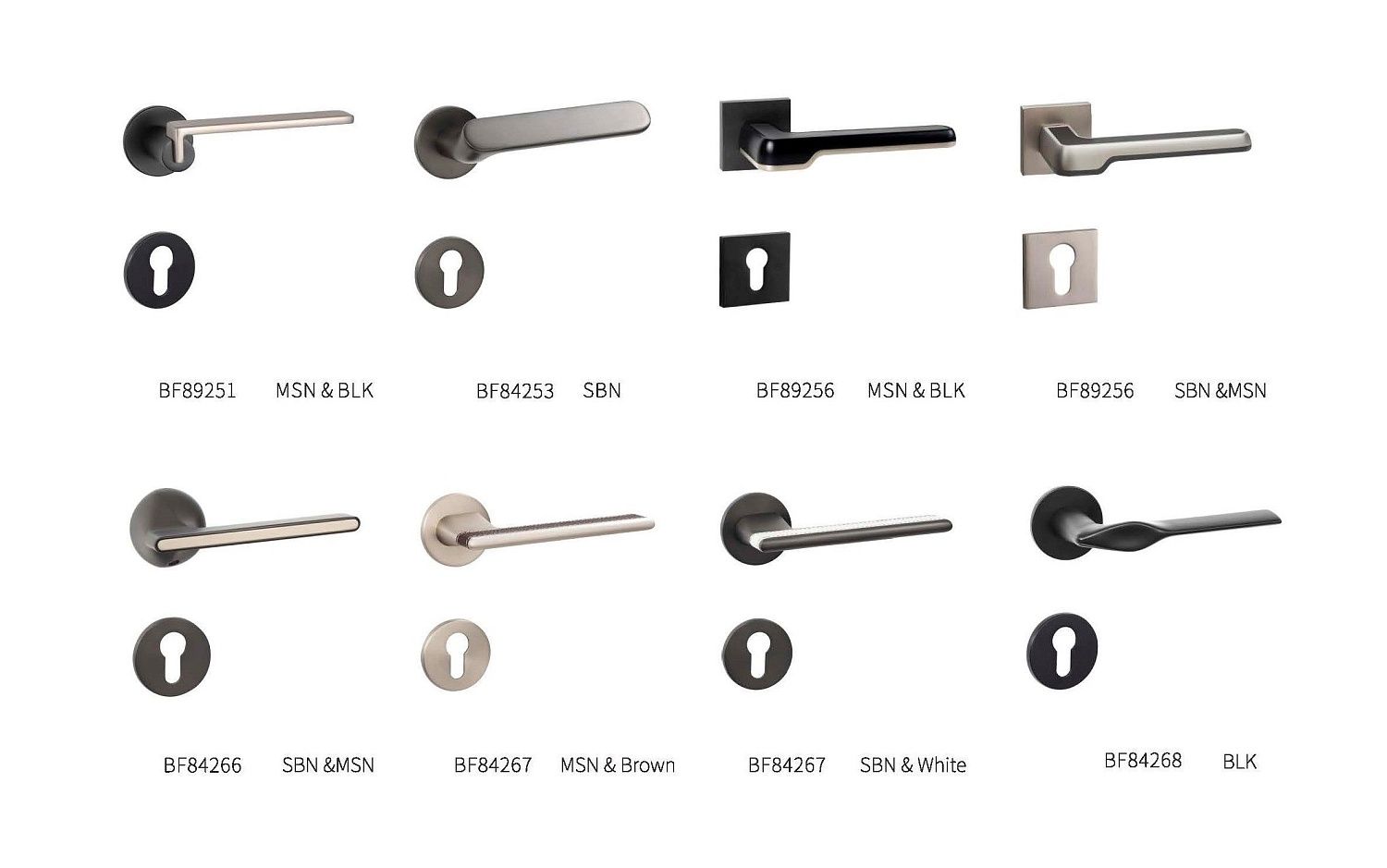

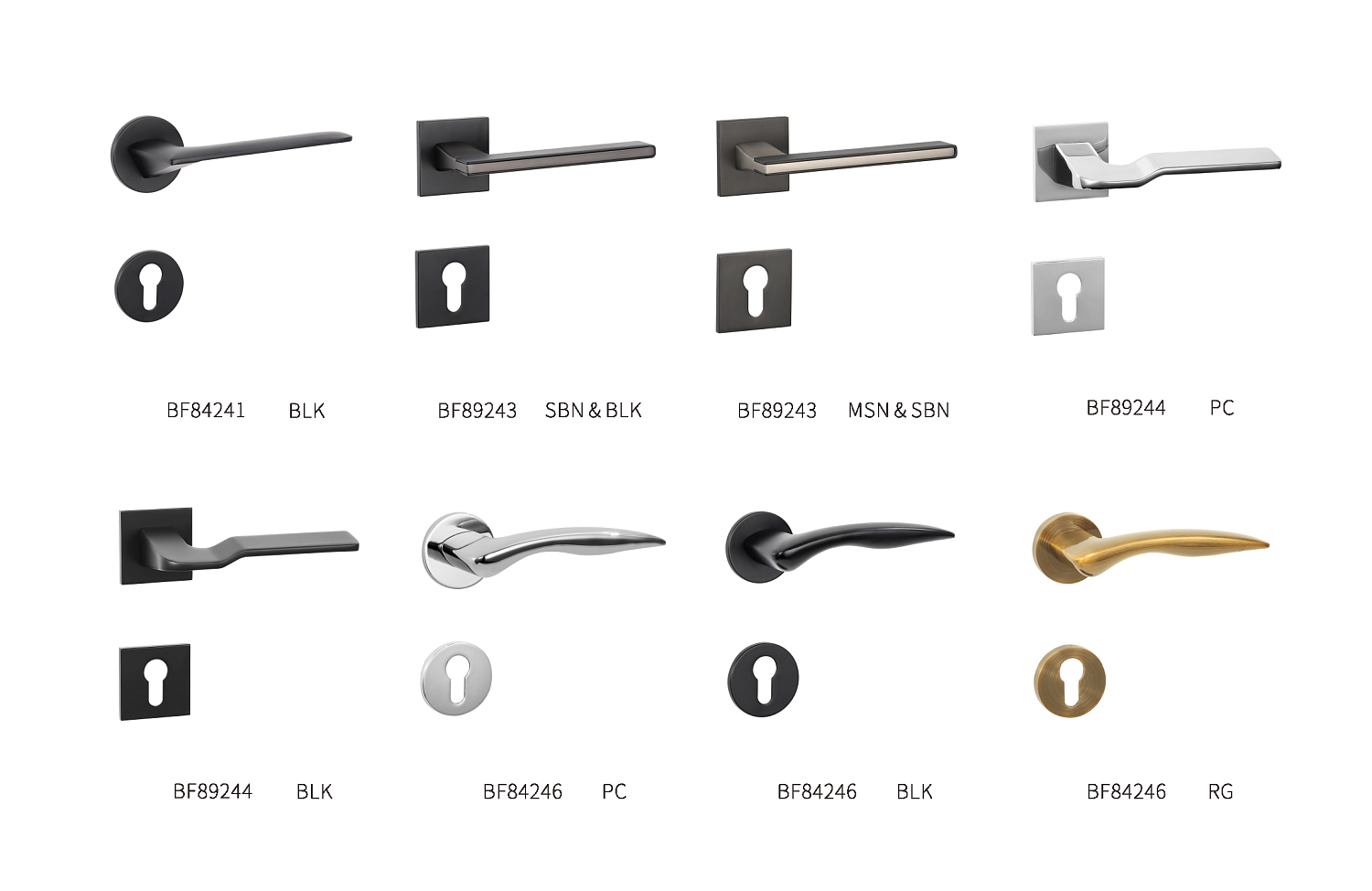

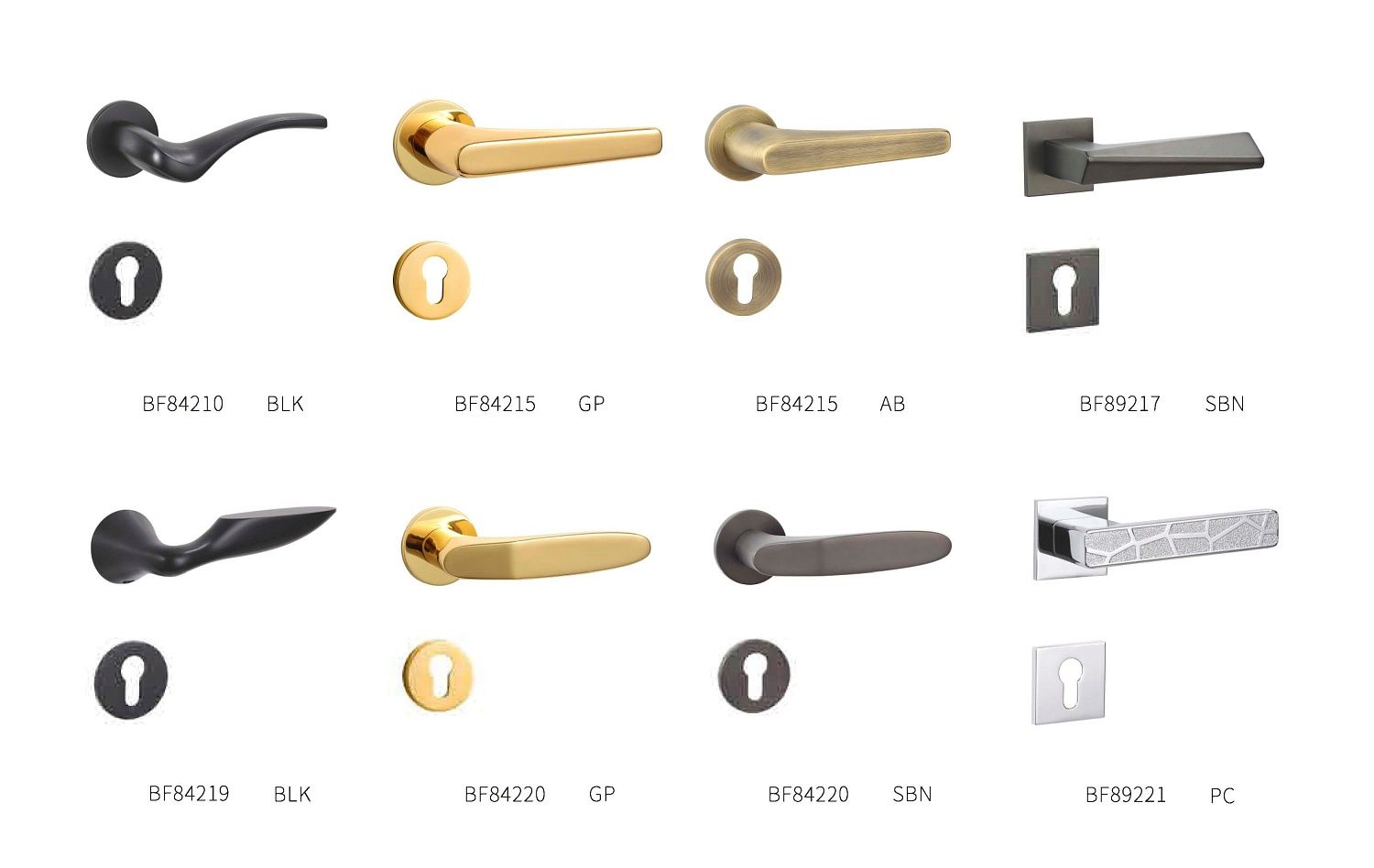

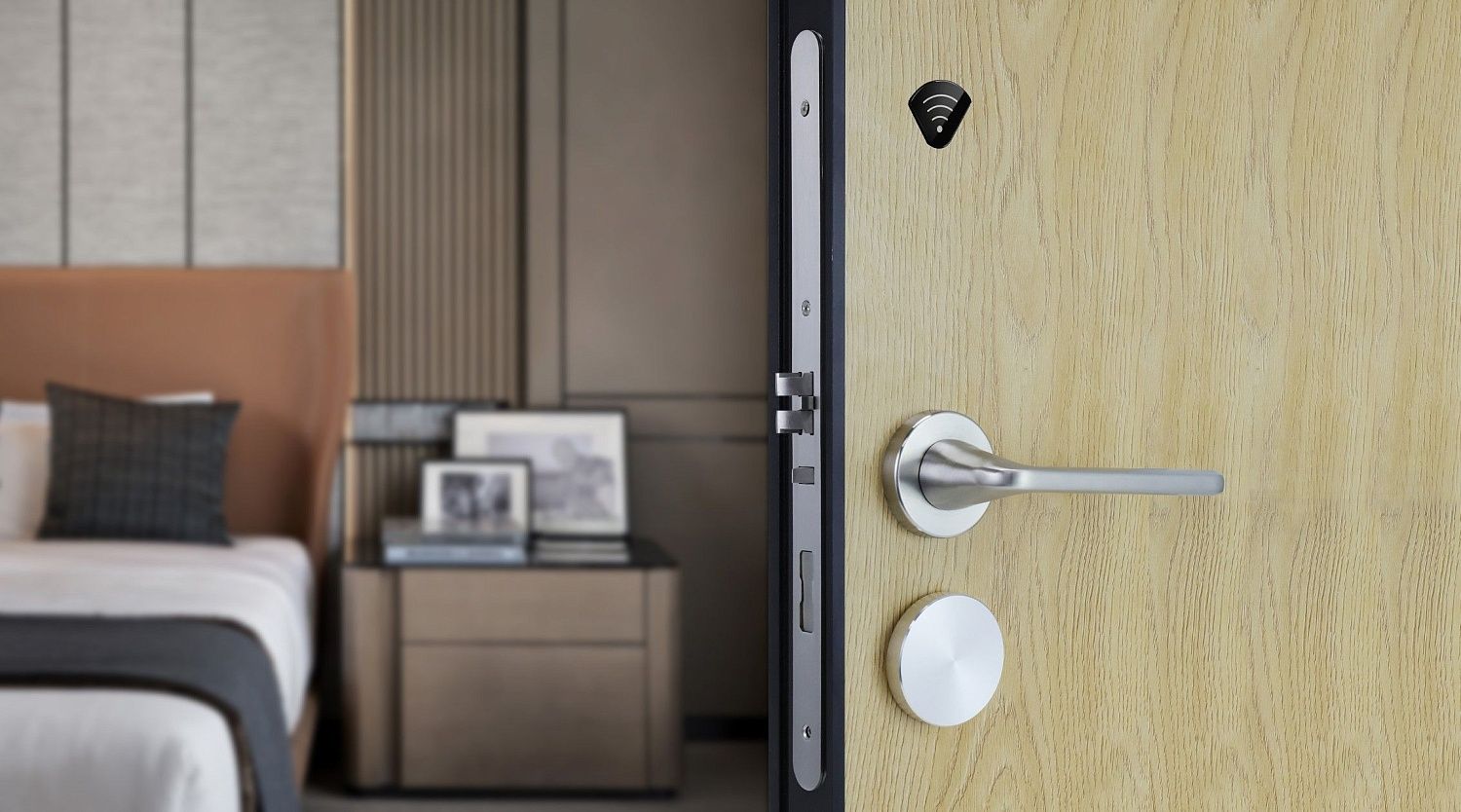

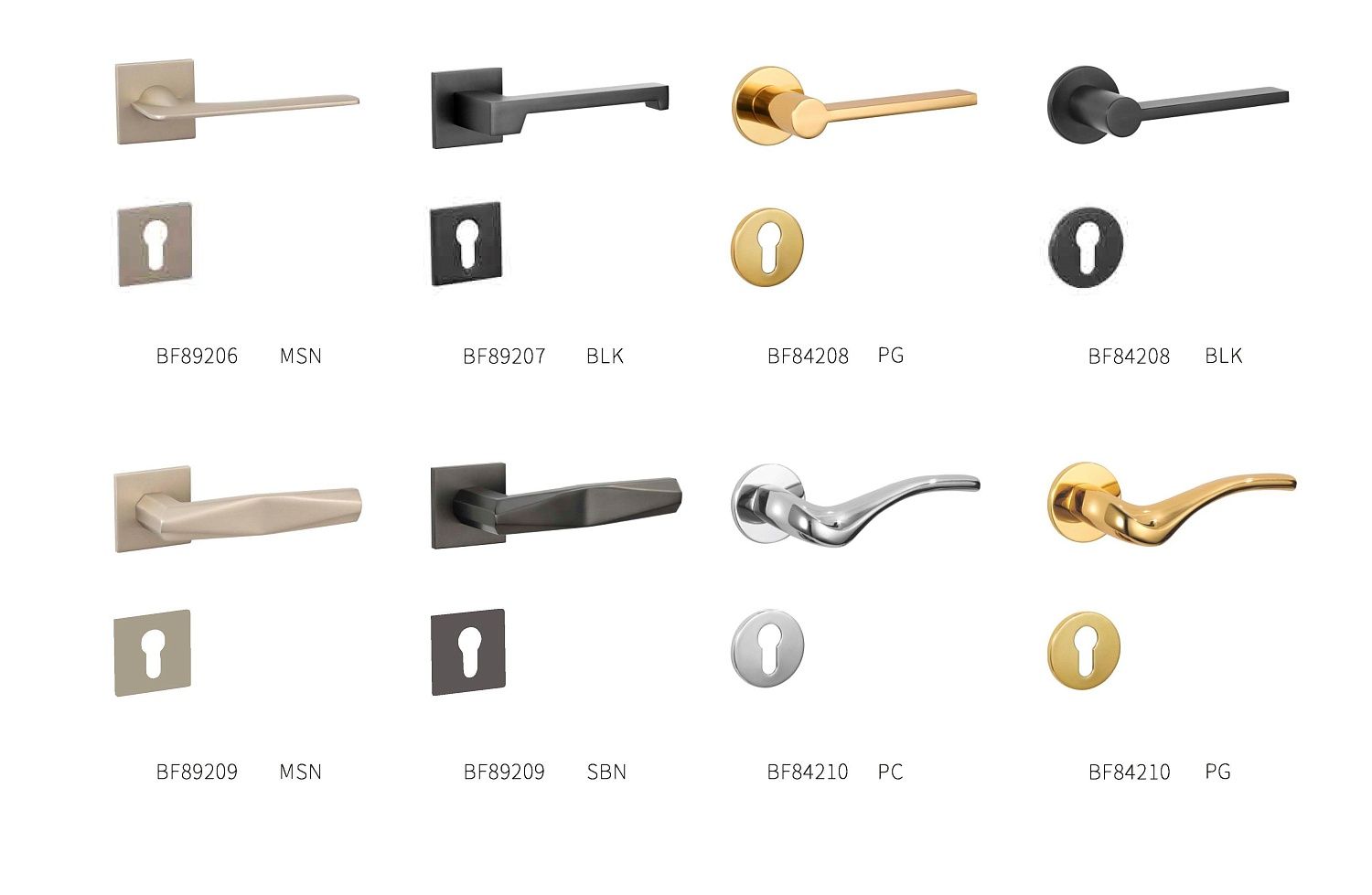

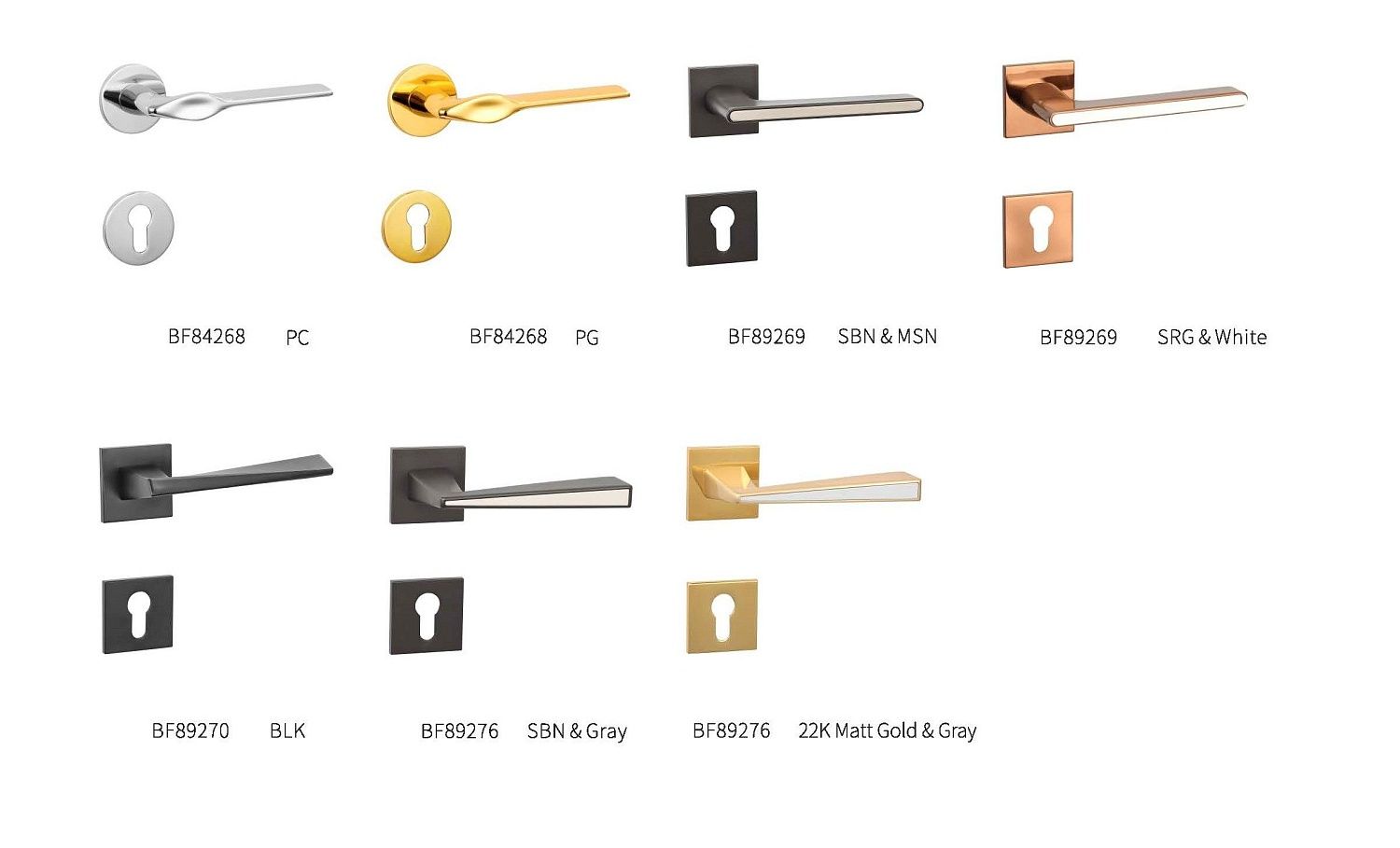

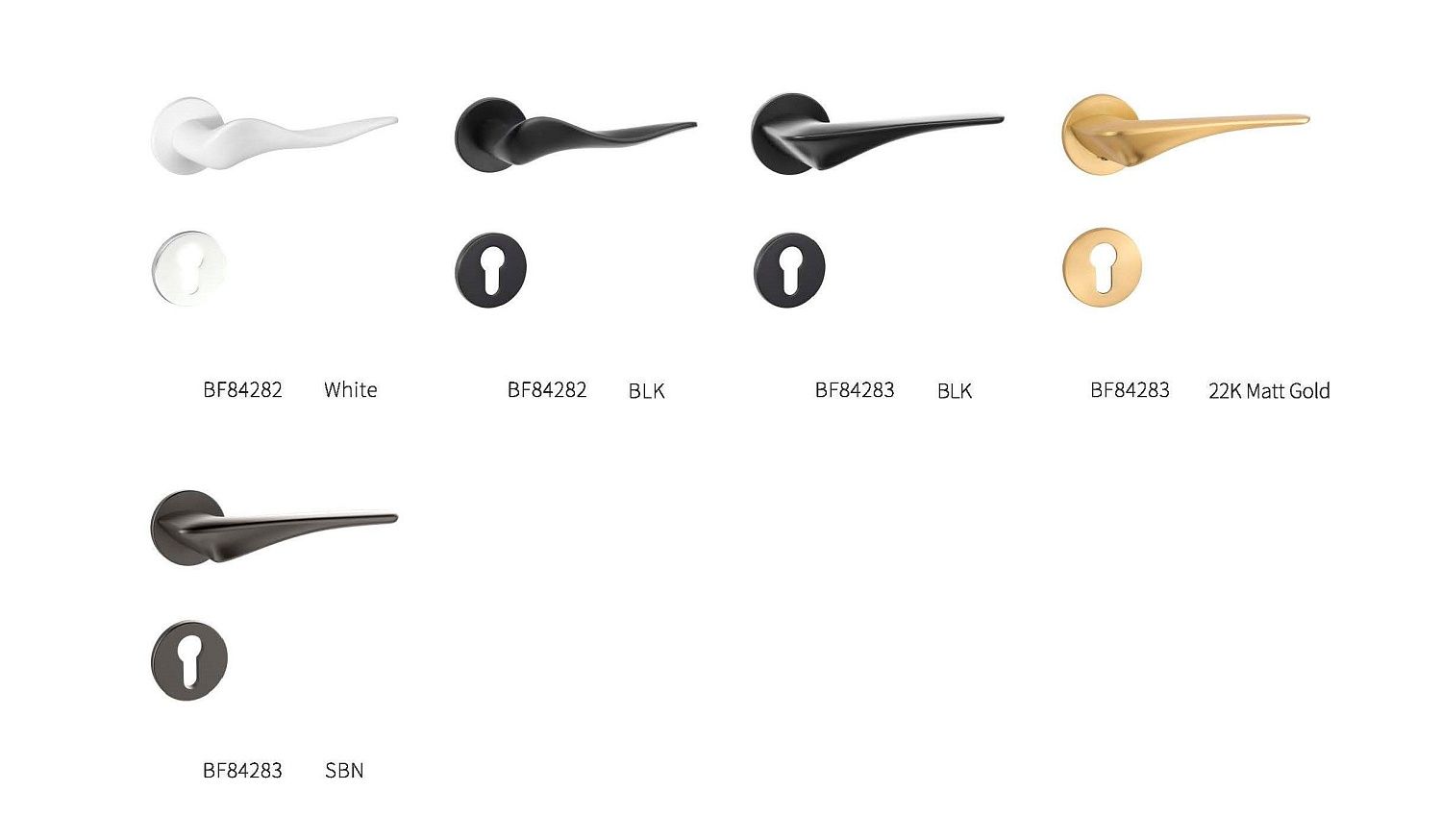

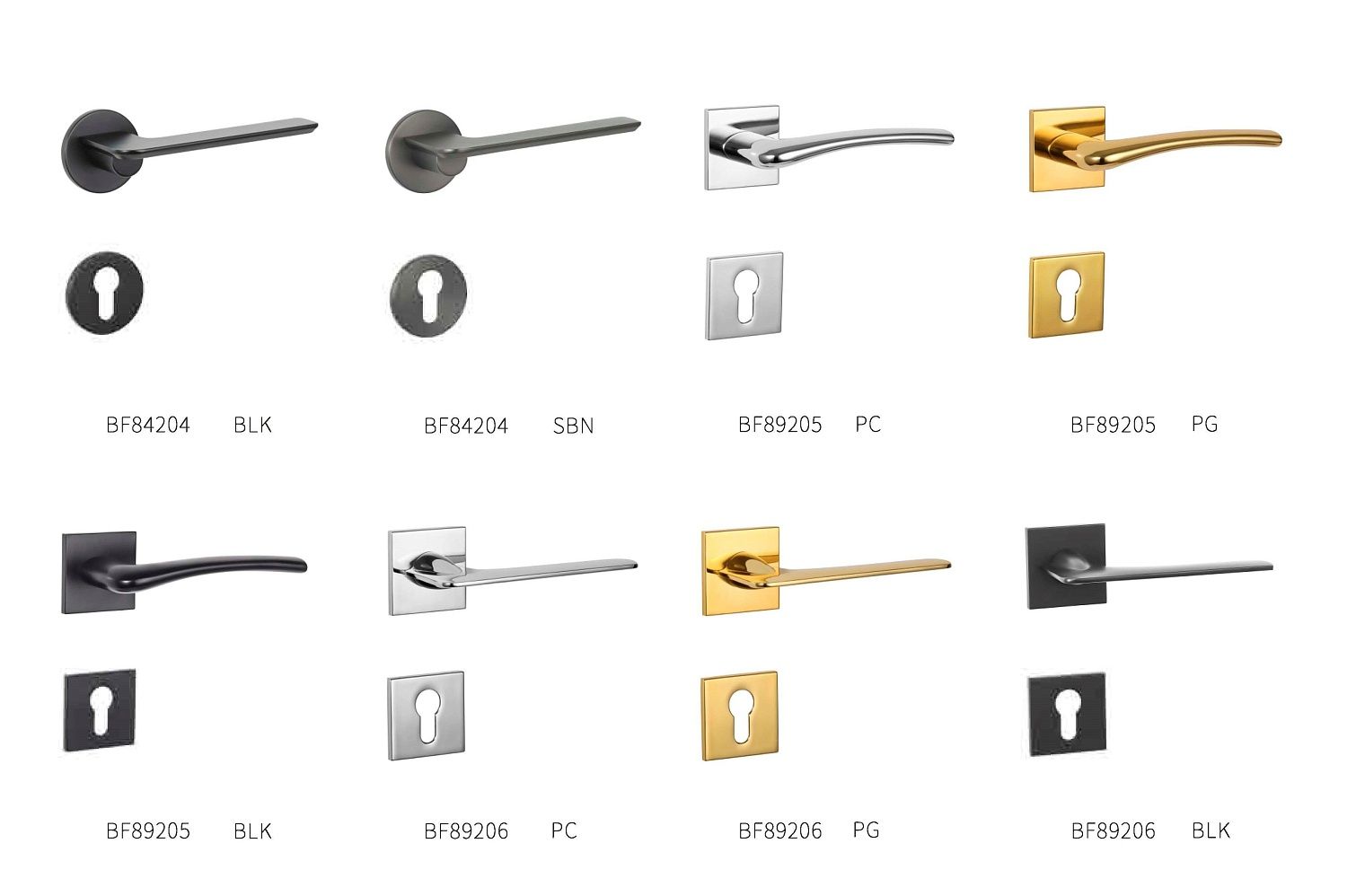

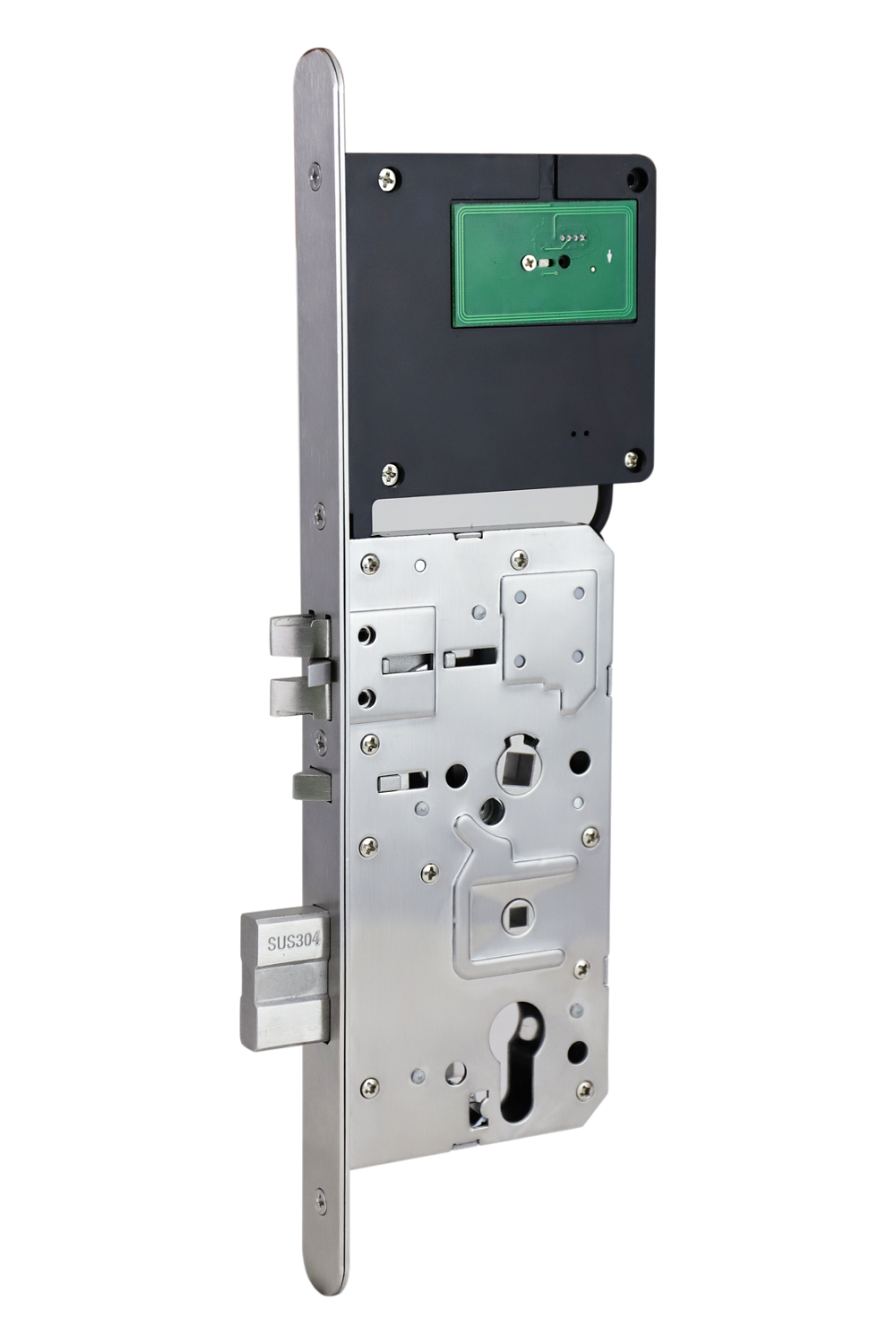

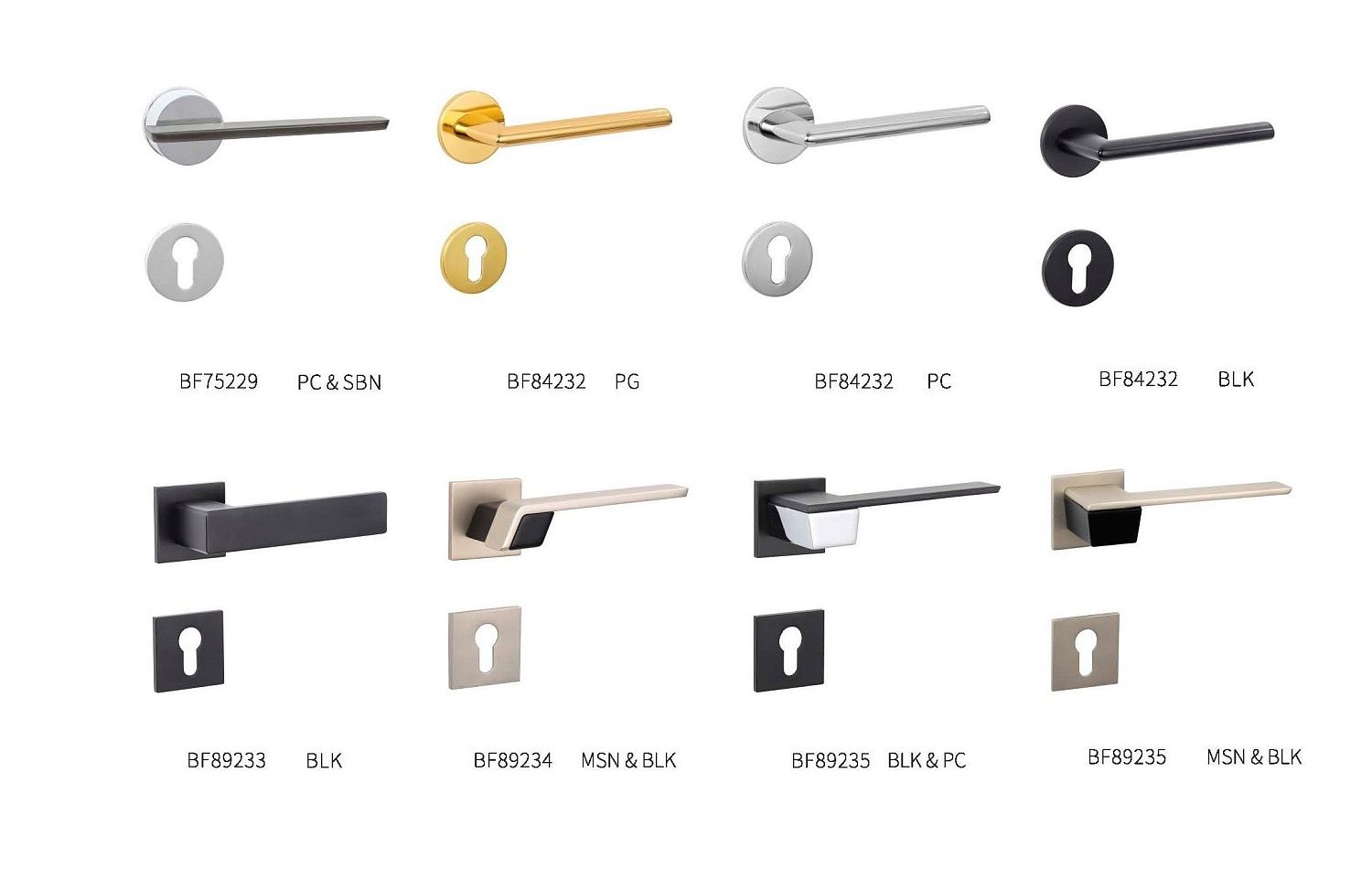

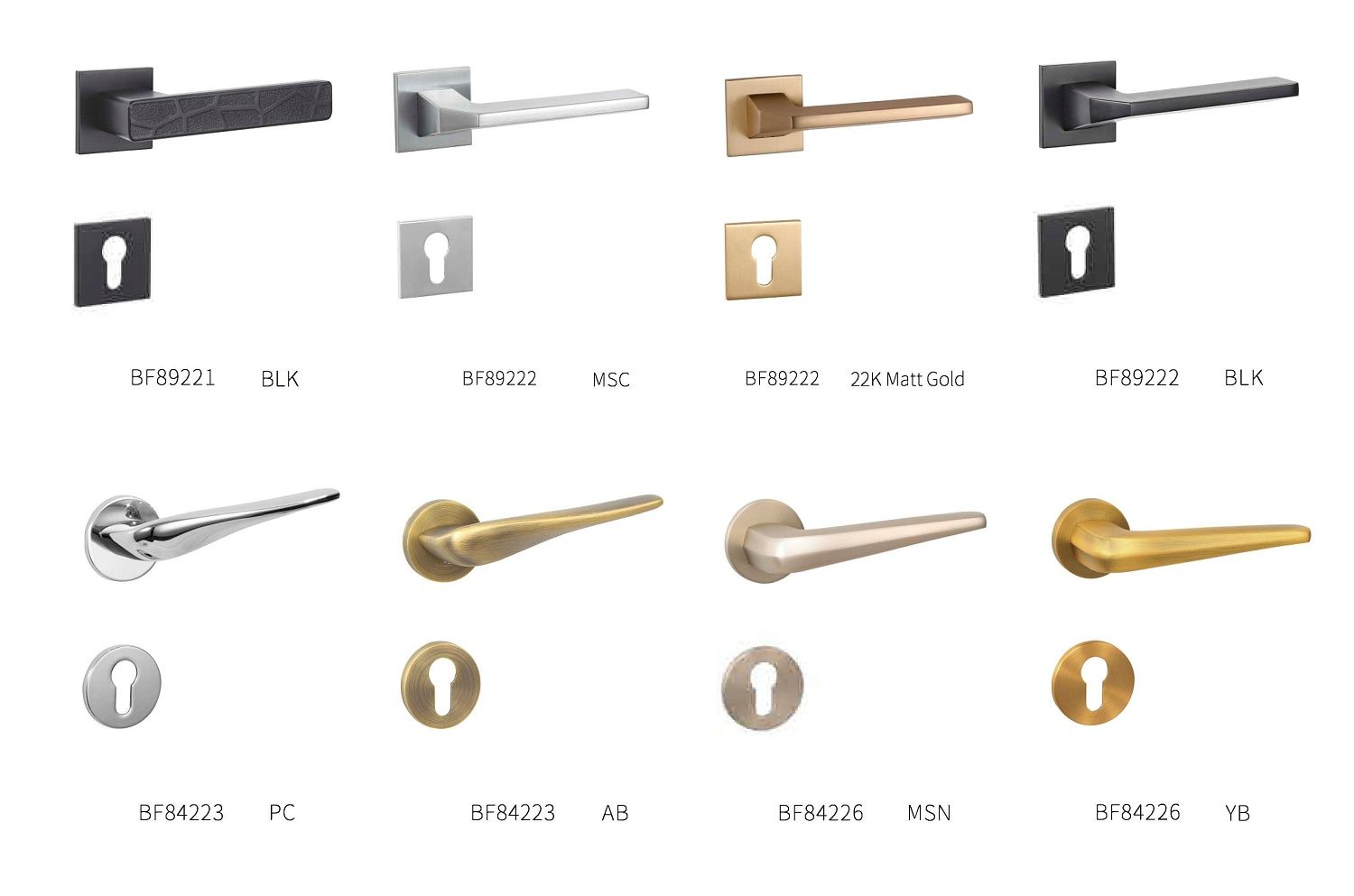

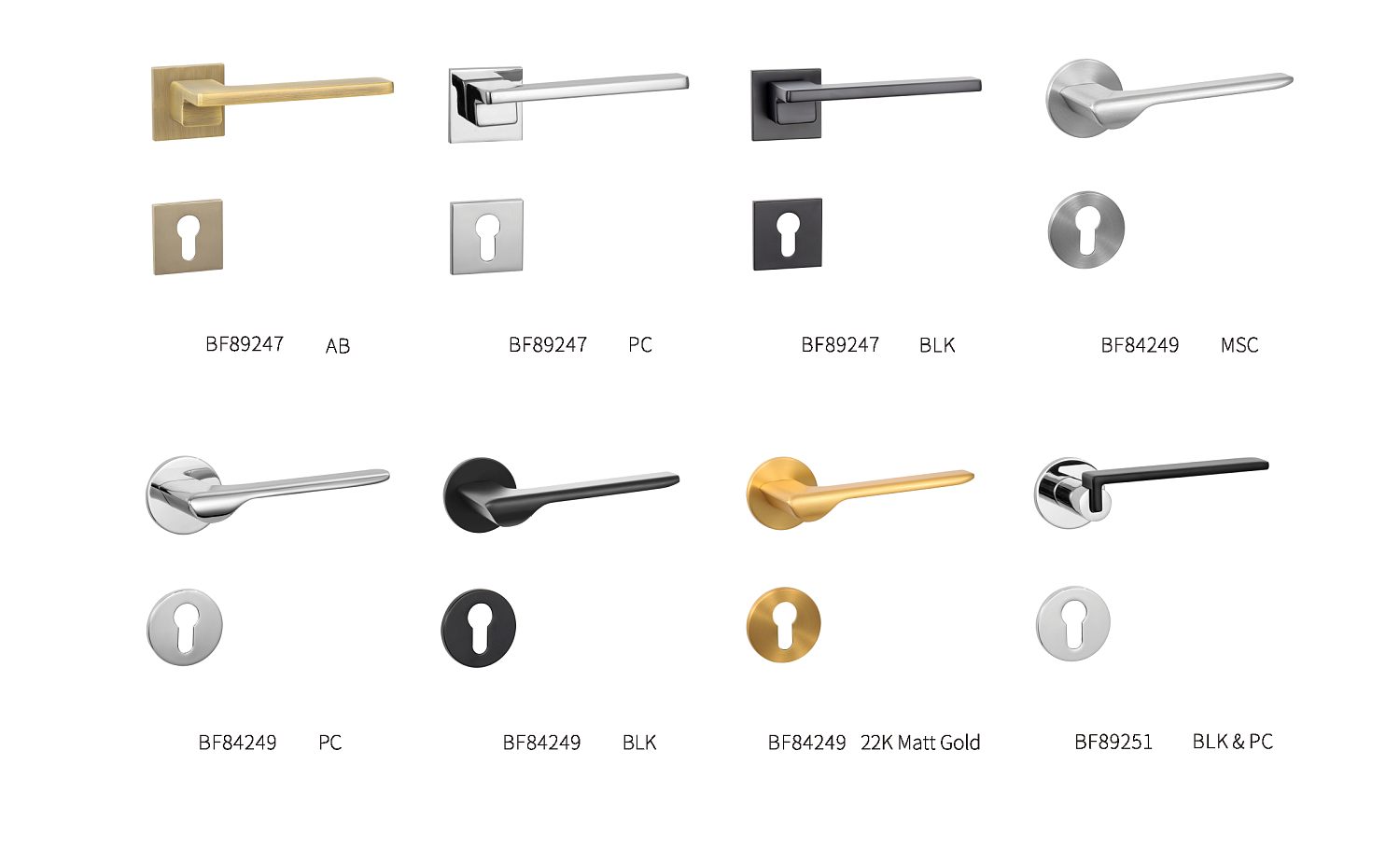

Lock handle options are presented in the image gallery and in the Documents section. All electronic components of the HSU-9909 hotel lock are implemented on its mortise mechanism: PCB, reader, battery box. There is also a version with an external reader like the HSU-9905BT model to use with a thick door. This made it possible to create a modern compact look that does not clutter the design of the hotel room door. It also creates a complete engineering solution without cabling the battery box and reader*, simplifying installation and further operation.
Hotel electronic HSU locks are modern, functional, technological locking solutions that correspond to international quality standards. They have the following advantages:
- A long service life guarantee
- A trendy design
- The option to configure electronic hotel locks to any door and opening method
We manufacture all locks from high-quality materials and offer a variety of color options.
Finish layers are resistant to light and other external factors and enjoy a long-lasting sheen. An extended warranty backs up our quality guarantee.
*There is a version with an outer reader for mounting on extra thick doors.
Features of the HSU Online Electronic Hotel Locks
All HSU hotel online locks use HTLock software that should be installed on the hotel server. Deploying the hotel ACS system on a local server provides system fault tolerance due to independence from the operation of external communication channels. The hotel, in principle, may not have access to the Internet, but all the services provided for the online locks are still available for the hotel.
In order to connect the lock to the server, either Sub-1G or BLE (Bluetooth Low Energy) technology is required. Sub-1G networking enables communication at the lowest energy consumption. The technology is used by the specialized HSU-BTGW gateway. BLE can be involved in case the HSU-FK002-BT online energy-saving switch is operated as a gateway. One HSU-BTGW gateway can serve up to 32 hotel locks, but one online switch is required for one lock of a particular room.
The HTLock system also allows the use of online locks that work offline. In this case, the lock can be opened by a guest with a keycard, by a dynamic offline password (for locks with a code panel), by mobile application via Bluetooth. This mode is especially convenient, for example, at a campsite with several cabins located around the territory, where it is quite difficult to deploy the system of gateways.
In the standard online mode, a lock can be opened with a keycard, a permanent guest keycard, the set password in both offline and online modes (for devices with a code panel), the application installed on a mobile device to which the lock is paired via Bluetooth, or remotely from the administrator's workplace.
In online mode, a hotelier has access to the status of a lock and all the logs. Including reports on passages through each door based on the data collected in real time.
Taking into account the hybrid structure of the solution, specially designed for the hotel industry, even in the event of a total failure of the online system (for example, a failure of the server, LAN that ensures the operation of gateways or online switches, power outage), all locks in the hotel continue working properly and still can be easily opened with a guest keycard. In the event of a prolonged system failure (like a long power outage), you have an option to issue guest keycards using the HSU-HS lock programmer. These measures have been taken to protect your guests and your reputation.
The implemented PMS integration module allows issuing guest keycards directly from the workplace of the hotel administrator from the usual software environment of the hotel accounting system, including a popular cloud PMS. The PMS integration module can be used with all popular hotel systems.
Each electronic lock comes with a mechanical key. It helps to open a door in case of an electronic failure or when the batteries are completely discharged. This ensures that there is no need to break down a room door in these cases.
|
System
|
Online, BLE |
|
Model
|
HSU-9909BT |
|
Dimensions
|
⌀56 х 128 mm. |
|
Card Type
|
Mifare Classic in offline mode, Mifare Classic in online mode, App (Bluetooth), Remote opening |
|
Color
|
is specified in the catalog |
|
Production material
|
stainless steel (the material may vary depending on the handle) |
|
Mechanical key
|
Yes |
|
Mechanical key type
|
standard DIN |
|
Power supply type
|
4 AAA batteries |
|
Current
|
<40mA |
|
Dynamic Electric Current
|
<150mA |
|
Distance
|
0–5 cm. |
|
Turn-off delay time
|
after 6 seconds. |
|
Electromotor
|
inside the mechanism |
|
Operating Humidity
|
15--95% |
|
Operating Temperature
|
-25 -- +70°C |
|
Charge level before Alarm signal
|
4.8 V. |
|
Indication
|
opening the door,unauthorized actions. |
|
EEPROM
|
more than 10 years. |
|
Door thickness
|
30–105 mm. |
|
Handle
|
with free running, external type, without power opening. |
|
Installation conditions
|
the thickness of the door can be 30-105 mm (it is mandatory to specify in the order if the parameters for the thickness of the web are less than 33 or more than 55 mm). The standard thickness is 45 mm. At least 110 mm should be from the edge of the door to the decor of the canvas. |
|
Options
|
you can always open the door with a handle from the inside (an anti-panic function), ability to change the mode from hotel to office in the lock. |
