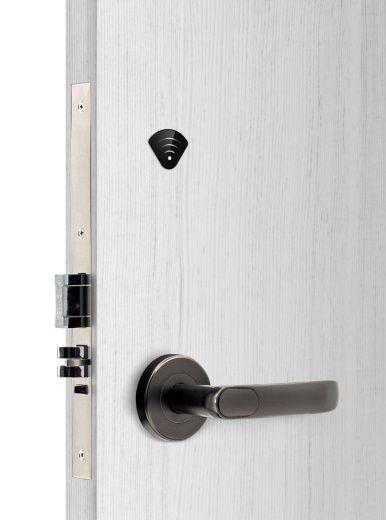

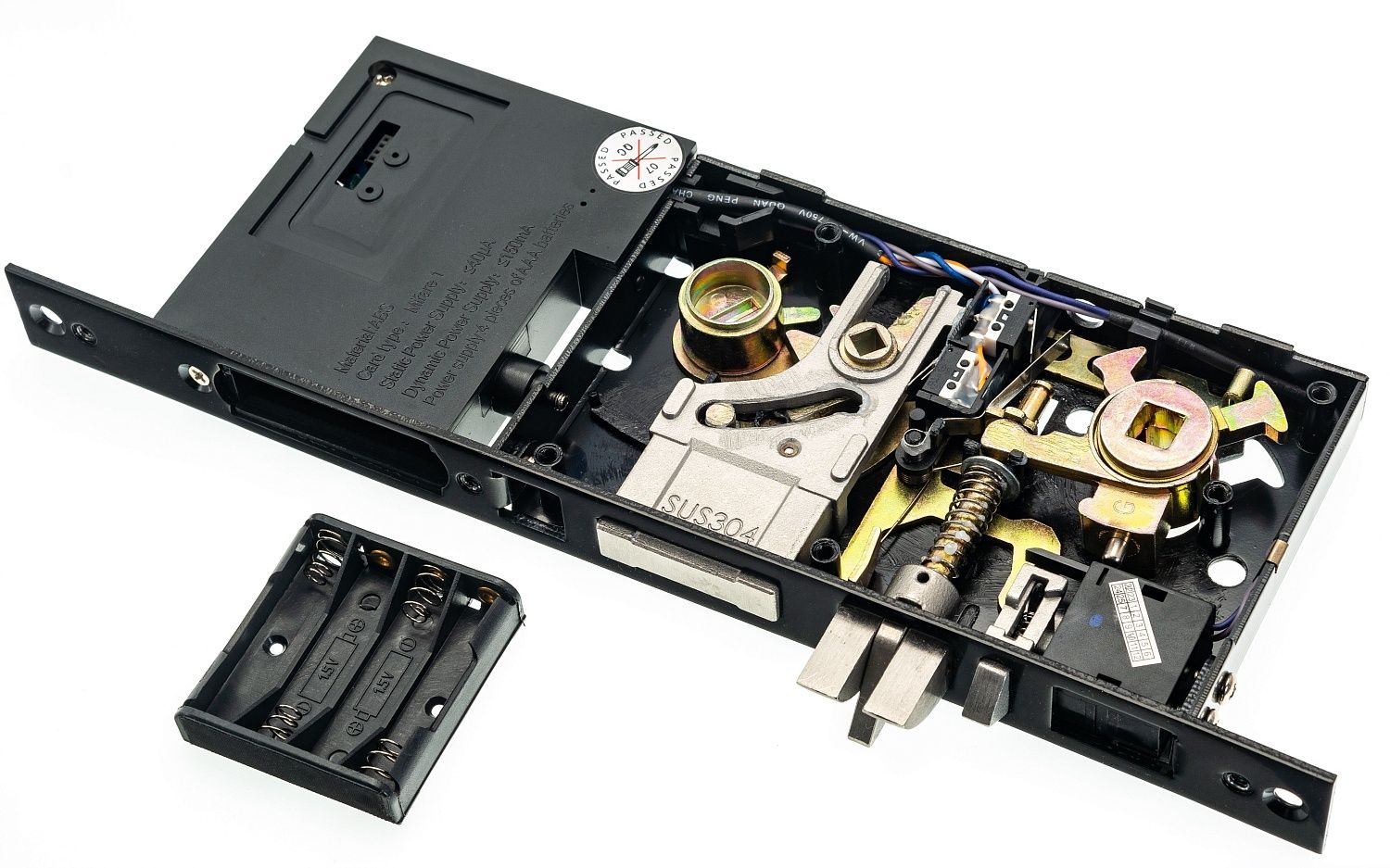

HSU-9905BT-TH electronic hotel lock with separate handles and a flush-mounted reader. Black matte design of TH hotel locks looks great on doors of any texture and color. All the electronic components of HSU-9905BT hotel lock series are moved to the mortise — PCB, reader and battery box. On the one hand, this has allowed us to create a modern efficient look that does not clutter the hotel room door design. On the other hand, that creates a finished engineering solution without using the patch cables for the battery box and the reader*, which enables easier mounting and further service operations.
In a standard set, the door handle is equipped with a hidden mechanical key cylinder that allows the hotel room door to be opened in case of an emergency. The standard mechanical cylinder equipment is an undeniable competitive advantage.
The inside door handle plate exists in two versions — with a knob on a DND latch and without it. Knobless design highlights the absolute minimalism of a handle-plate; the DND latch closes by lifting the main handle up from the inside of the room.
Handles symmetrical design with easily changeable latch direction without disassembling the mortise of the HSU-9905BT-TH hotel room lock relieve the hesitation of placing an order. Any lock fits any direction of the door. This feature also makes life easier for the service organization.
Hotel electronic HSU locks are modern, functional, technological locking solutions that correspond to international quality standards. They have the following advantages:
- A long service life guarantee
- A trendy design
- The option to configure electronic hotel locks to any door and opening method
We manufacture all locks from high-quality materials and offer a variety of color options.
Finish layers are resistant to light and other external factors and enjoy a long-lasting sheen. An extended warranty backs up our quality guarantee.
*There is a version with an outer reader for mounting on extra thick doors.
Features of the HSU Online Electronic Hotel Locks
All HSU hotel online locks use HTLock software that should be installed on the hotel server. Deploying the hotel ACS system on a local server provides system fault tolerance due to independence from the operation of external communication channels. The hotel, in principle, may not have access to the Internet, but all the services provided for the online locks are still available for the hotel.
In order to connect the lock to the server, either Sub-1G or BLE (Bluetooth Low Energy) technology is required. Sub-1G networking enables communication at the lowest energy consumption. The technology is used by the specialized HSU-BTGW gateway. BLE can be involved in case the HSU-FK002-BT online energy-saving switch is operated as a gateway. One HSU-BTGW gateway can serve up to 32 hotel locks, but one online switch is required for one lock of a particular room.
The HTLock system also allows the use of online locks that work offline. In this case, the lock can be opened by a guest with a keycard, by a dynamic offline password (for locks with a code panel), by mobile application via Bluetooth. This mode is especially convenient, for example, at a campsite with several cabins located around the territory, where it is quite difficult to deploy the system of gateways.
In the standard online mode, a lock can be opened with a keycard, a permanent guest keycard, the set password in both offline and online modes (for devices with a code panel), the application installed on a mobile device to which the lock is paired via Bluetooth, or remotely from the administrator's workplace.
In online mode, a hotelier has access to the status of a lock and all the logs. Including reports on passages through each door based on the data collected in real time.
Taking into account the hybrid structure of the solution, specially designed for the hotel industry, even in the event of a total failure of the online system (for example, a failure of the server, LAN that ensures the operation of gateways or online switches, power outage), all locks in the hotel continue working properly and still can be easily opened with a guest keycard. In the event of a prolonged system failure (like a long power outage), you have an option to issue guest keycards using the HSU-HS lock programmer. These measures have been taken to protect your guests and your reputation.
The implemented PMS integration module allows issuing guest keycards directly from the workplace of the hotel administrator from the usual software environment of the hotel accounting system, including a popular cloud PMS. The PMS integration module can be used with all popular hotel systems.
Each electronic lock comes with a mechanical key. It helps to open a door in case of an electronic failure or when the batteries are completely discharged. This ensures that there is no need to break down a room door in these cases.
|
System
|
Online, BLE |
|
Model
|
HSU-9905BT-TH |
|
Dimensions
|
⌀65 x 110 mm with knob / ⌀65 without knob |
|
Card Type
|
Mifare Classic in offline mode, Mifare Classic in online mode, App (Bluetooth), Remote opening |
|
Color
|
Black matte |
|
Production material
|
Zink alloy |
|
Mechanical key
|
Yes |
|
Mechanical key type
|
lock / all locks |
|
Power supply type
|
4 x 1.5 V AAA batteries, enough for 15 000 operations |
|
Dynamic Electric Current
|
less than 150 mA |
|
Distance
|
0–5 cm |
|
Turn-off delay time
|
after 6 sec. |
|
Electromotor
|
inside the mortise |
|
Operating Humidity
|
10 to 90 RH |
|
Operating Temperature
|
-20 – +60 °С |
|
Charge level before Alarm signal
|
4.8 V. If the charge is less than 4.8 V, the lock can be opened easily more than 100 times |
|
Indication
|
door opening, unauthorized activity, low battery (indicated by a red and blue LED) |
|
EEPROM
|
to maintain the information and configuration even if the batteries are removed |
|
Audit
|
up to 1000 records |
|
Door thickness
|
from 30 mm |
|
Handle
|
outside type, anti-tamper with free moving clutch mechanism, excludes the opening force |
|
Installation conditions
|
door thickness 30-80 mm; when you order, you must specify if the door thickness is less than 38 mm or more than 55 mm; standard door thickness is 45 mm; distance from the edge of the door to the nearest decor should be at least 105 mm (mortise depth is 95mm) |
|
Options
|
you can always open the door with a handle from the inside (an anti-panic function), ability to change the mode from hotel to office in the lock |
